Product Description

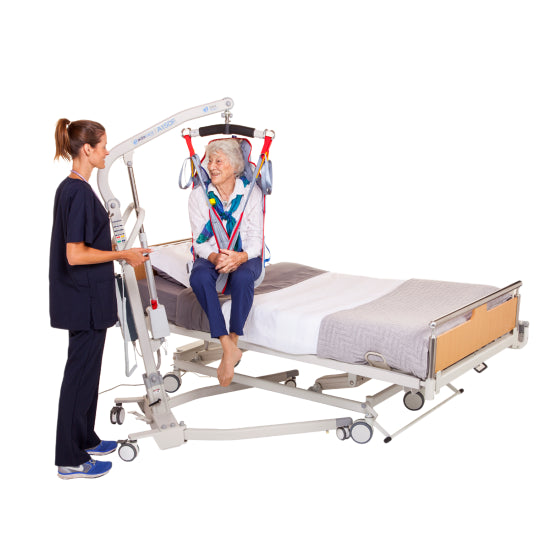

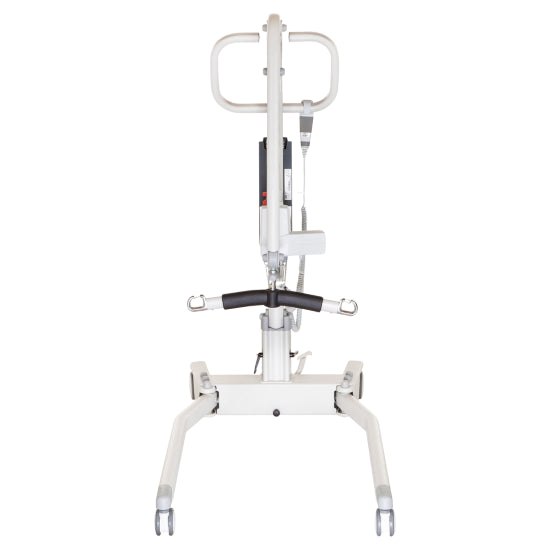

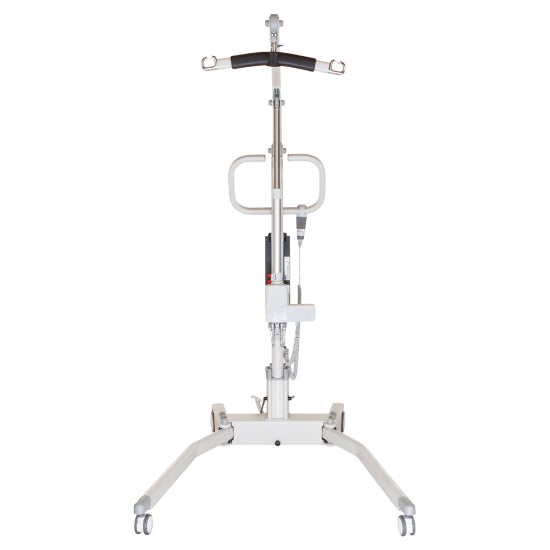

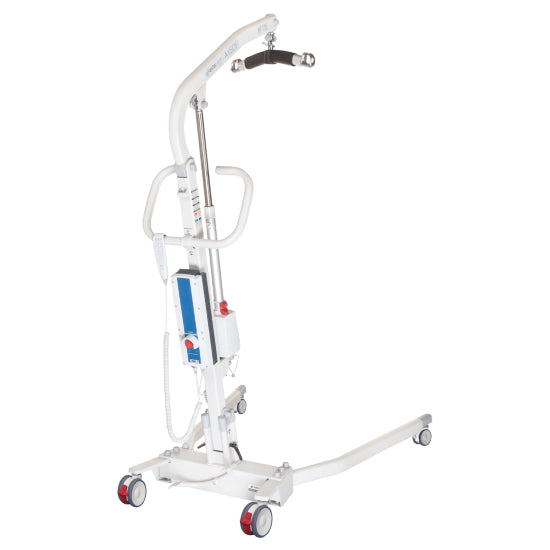

The Aspire 150F is a lightweight and portable folding patient lifter designed for home and community environments.

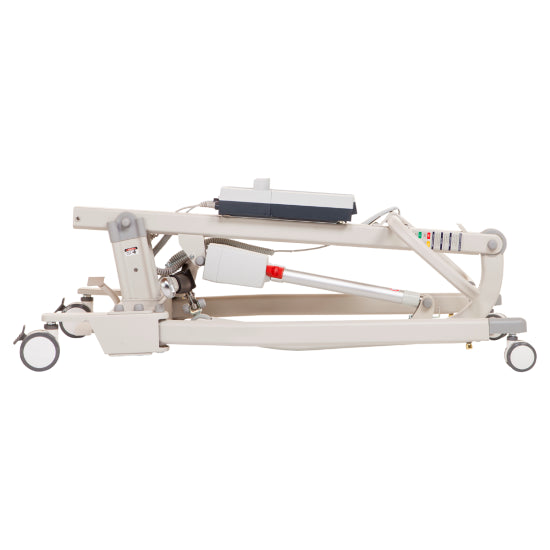

  • Folds for Transport and Storage: Folds quickly and conveniently for storage or transport in the boot of the car
  • Ergonomic Handset: The latest slimline technology from Linak fits neatly in the hand with an intuitive control panel. Battery and service indicator lights assist with service scheduling
  • Off Set Leg Design: Provides additional accessibility around chairs and furniture in the home
  • Leg Function: Simple foot operation to open or close legs for lifting stability or accessibility
  • Quick Release Yoke Attachment: One touch release and attach mechanism, designed for the busy caregiver. Padded yoke for added patient safety
  • Build Quality: Strong powder coated aluminium frame with industry leading Linak electronics and warranty provision
  • Safety: Critical features include emergency stop button, emergency lowering and antientrapment technology, with both patient and caregiver safety at heart
  • Intelligent Diagnostics: State of the art Linak Jumbo Care control system. Tracks usage and service requirements for safety and compliance
  • Tente Casters: 2 x 75 mm front castors for maximum under bed clearance and accessibility. 2 x 100 mm rear locking castors for safety and manoeuvrability
  • Item Weight: 32.9 kg
  • Tested and compliant to AS/NZS ISO 10535:2011 (the Australian standard for hoists)


Specifications

SKU LSS390600
Display Name ASPIRE - A150F Folding Patient Lifter
Total Length 1220 - 1280 mm
Total Width 660 - 1040 mm
Total Height 1873 mm
Lift Range 428 - 1640 mm
Leg Gait Range 580 - 950 mm
Safe Working Load 150 kg
Material Aluminium



Warranty

Frame: 5 Years
Electronics: 3 Years
Battery and Handset: 1 Year



Brochures




Got Any Questions?

Still unsure if this product is right for your intended use? Get in contact with us via the contact us page or our chat box.
